CombustionProcess Class Reference

This object manages the physical combustion process. More...

Inheritance diagram for CombustionProcess:

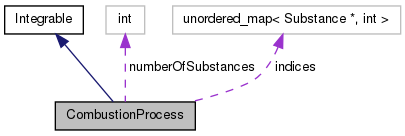

Collaboration diagram for CombustionProcess:

List of all members.

Public Member Functions
	CombustionProcess (Compound *c, std::ostream *o)
void	diffEq (const double *const x, const double t, double *const dx)
	This function should calculate the differential equation.
virtual int	getDim ()
	This function should return the number of dimensions of the system to be integrated.
double	getState (double *const x)
	Function to get the current state of the system before starting the integration.
void	listSubstances ()
virtual void	peek (const double *const, const double)
	Function that can observe the current state of the system during the integration.
void	setAdiabatic ()
void	setState (const double *const x, const double t)
	Function to set the current state of the system after finishing the integration.
Protected Attributes
std::unordered_map< Substance *, int >	indices
int	numberOfSubstances

---

Detailed Description

It manages a Compound object and calculates the differential equation in a format that is needed by an Integrator object and therefore implements the interface integrable. It also generates the output using the peek function that is called after every integration step.

---

Member Function Documentation

void diffEq	(	const double *const	x,
		const double	t,
		double *const	dx
	)		[virtual]

Parameters:

x	Pointer to array of length getDim() that contains the current phasespace point of the system.
t	The current value of the coordinate to be integrated.
dx	Pointer to array of length getDim() where the first derivative of the phasespace point with respect to the coordinate t is to be stored in.

Implements Integrable.

int getDim

(

)

[virtual]

After that function being called, the dimensionality of the system should not change anymore, since the integrator needs to rely on that number.

Implements Integrable.

double getState

(

double *const

x

)

[virtual]

Parameters:

x	Pointer to array of length getDim() to store current phasespace point of the system in.

Implements Integrable.

void peek	(	const double * const	const,
		const double
	)		[virtual]

Parameters:

x	Pointer to array of length getDim() with the current phasespace point of the system.
t	The current time of the system.

Reimplemented from Integrable.

void setState	(	const double *const	x,
		const double	t
	)		[virtual]

Parameters:

x	Pointer to array of length getDim() with the new phasespace point of the system.
t	The new time of the system.

Implements Integrable.
